From engine bay to motor winding — how our materials solve real insulation problems. Every photo on this page is from a working line, not a stock library.

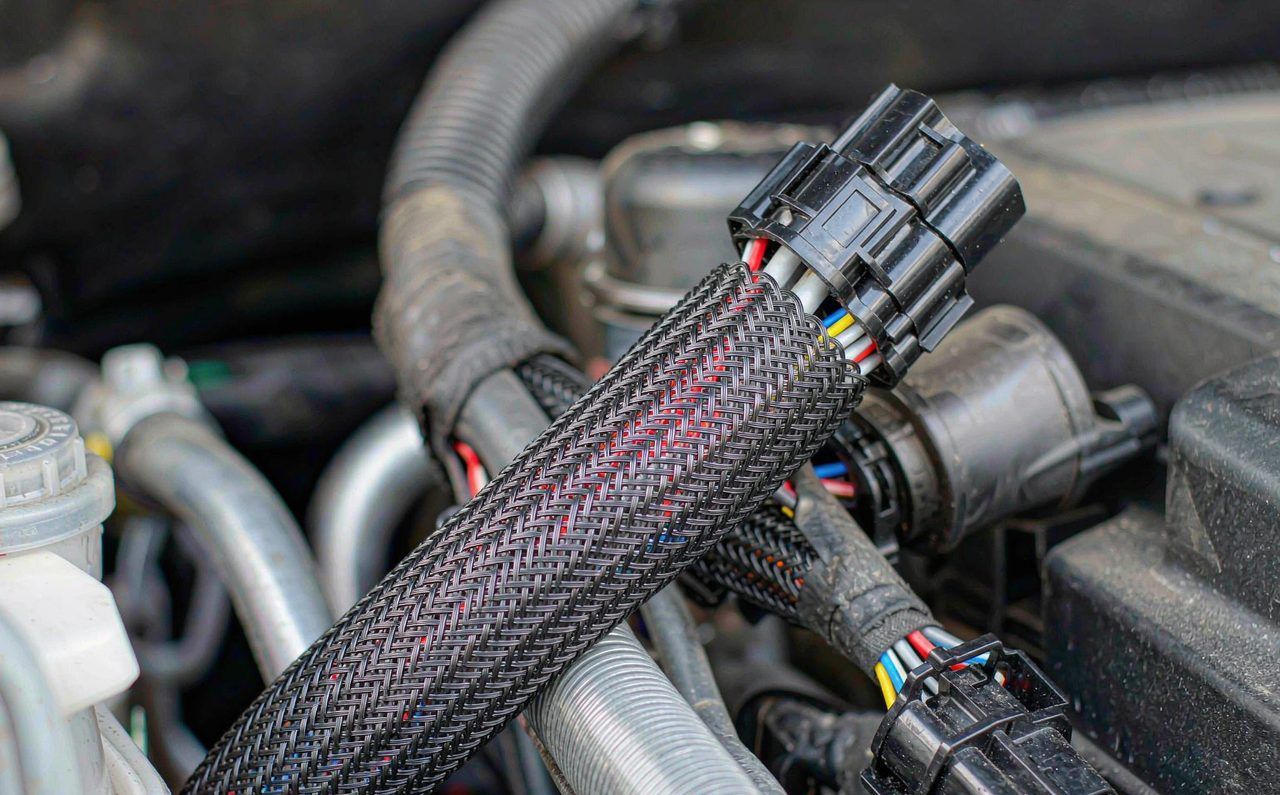

High-temperature, fluid-exposed, vibration-loaded. The most demanding harness environment in any vehicle — and the one our braided sleeving was built for.
Fuel lines, coolant lines, charge-air tubes and wiring harnesses routed through a high-temperature, fluid-exposed engine bay. Vibration, abrasion from adjacent components, oil splash and continuous thermal cycling are the failure modes.

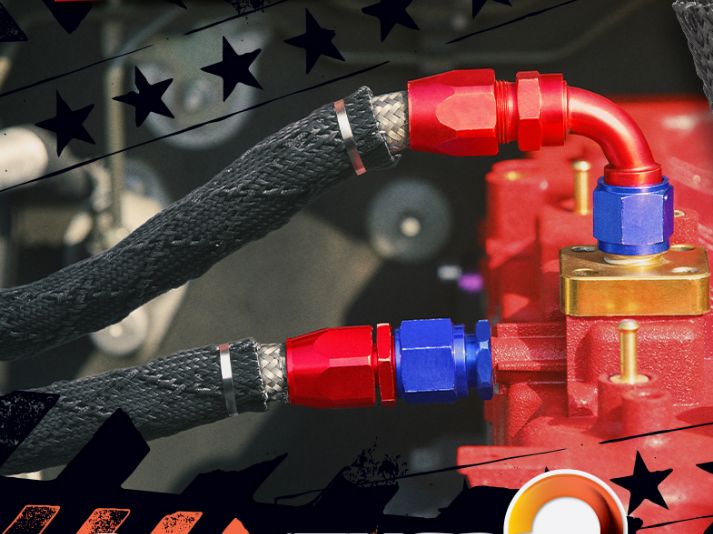

Hydraulic and pneumatic lines wrapped in our expandable PET braid — used on performance vehicles, off-highway equipment and industrial machinery where abrasion and heat are constant.
High-pressure lines fitted with red/blue anodized fittings, wrapped in tight-weave black PET braid to protect against chafing, heat from the engine bay, and accidental contact with moving components. The braid expands to slip on, then contracts to grip.
Available in black, red, blue, orange, yellow and many other colors for harness identification.

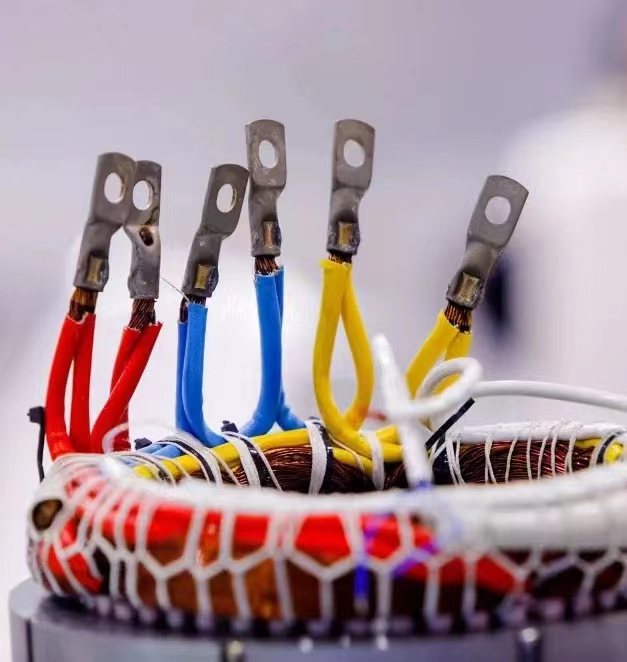

The classic use case for silicone fiberglass sleeving — motor lead wires passing out of the stator winding. Heat, dielectric stress, oil splash, vibration, all in one spot.
The lead exit zone is where most motor winding failures begin. The copper magnet wire is enamel-coated; the lead wire is insulated and protected. The junction — where the magnet wire transitions to the lead — sees mechanical stress, vibration, oil and heat. A single dielectric breakdown here kills the motor.
For automotive harness, EV high-voltage harness, industrial control cabinets, medical instruments, rail transit and aerospace wiring — solving abrasion, high temperature, water sealing, bundling and long-term reliability.
| Typical Location | Challenge | Recommended Materials |
|---|---|---|
| Engine bay harness | Continuous heat, fluids, abrasion | Self-wrap sleeving, corrugated tube, silicone fiberglass sleeving, PET braid |
| Chassis & sensor harness | Mechanical wear, flexing | PET braided sleeving, corrugated tube |
| Connector terminations | Sealing, strain relief | Dual-wall adhesive-lined heat shrink |
| Equipment internal wiring | Space saving, weight | PET braided sleeving, expandable sleeving |
Beyond engine bay and motor winding — additional installation references across three demanding application areas. Each photo is a representative build, not a stock library image.
For OEMs, Tier 1 suppliers, EV three-electric systems, harness makers, motor plants, connector and electronic module customers — from engineering validation to supply-chain cost-down.
High-voltage interconnection protection with dual-wall adhesive-lined heat shrink for sealed joints, silicone fiberglass sleeving for HV harnesses.
Lead insulation and winding overhang protection: high dielectric strength, oil resistance for oil-cooled motors, thermal aging stability at 155 °C+ continuous.
PET braided sleeving for internal bundling with heat dissipation; high-breakdown sleeving for power module and inverter assemblies.
For drive motors, compressor motors, generators, pump and valve motors, fan motors and industrial motors — solving thermal aging, oil resistance, abrasion, high breakdown voltage and assembly crush.
| Position | Problem Solved | Recommended Materials |
|---|---|---|
| Motor lead wires | Dielectric stability, creepage risk | Silicone fiberglass sleeving (up to 50 kV) |
| Winding overhang | Thermal aging, batch consistency | Silicone fiberglass sleeving, high-breakdown sleeving |
| Oil-cooled / compressor motors | Oil immersion, dimensional stability | Acrylic fiberglass sleeving (UZFT2), oil-resistant grades |
| External control cables | Wear, assembly damage | Heat shrink, sealing components |

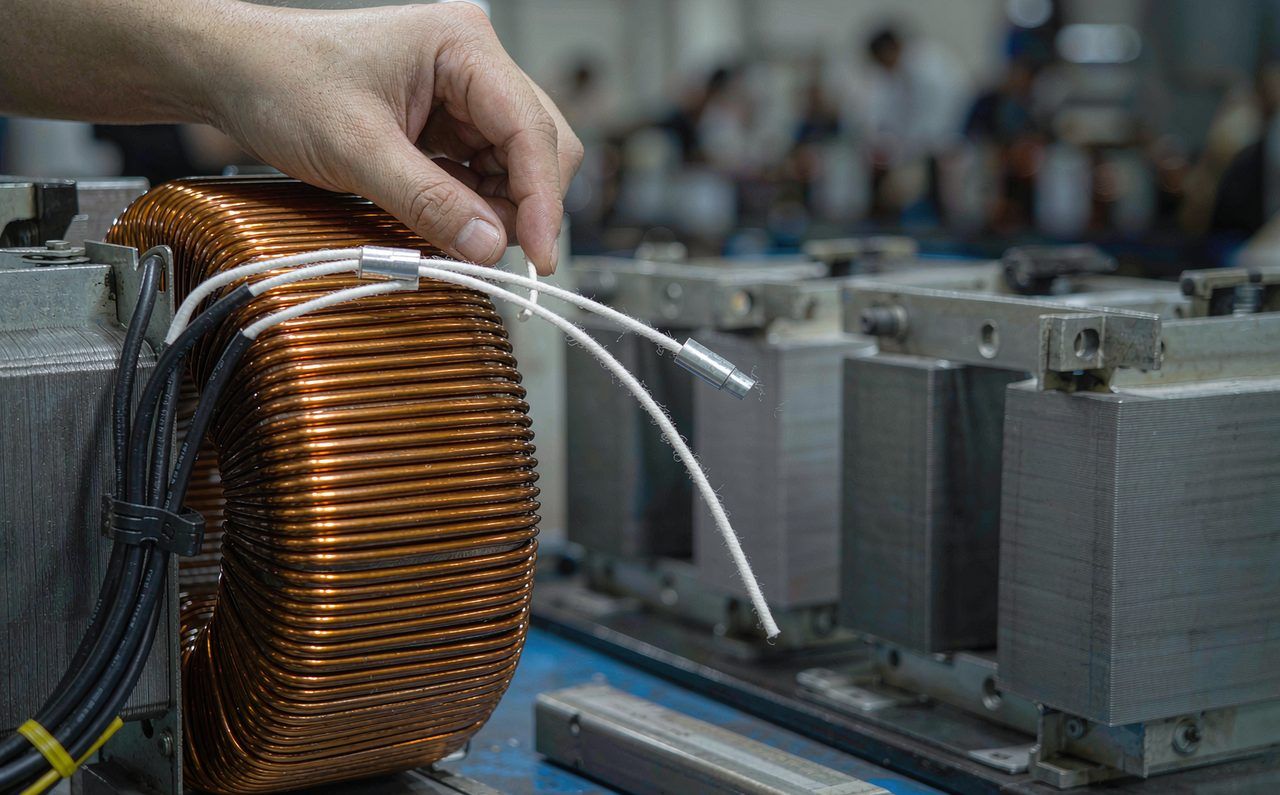

For electronic transformers, power transformers, inductors, reactors, switching power supplies, inverters and power modules — lead insulation, temperature class compliance, oil resistance, flame retardance and import-alternative validation.
| Position | Key Requirement | Recommended Materials |
|---|---|---|
| Transformer leads | Continuous / transient temperature ratings | Silicone fiberglass sleeving |
| Coil ends | Dielectric + mechanical protection | Acrylic fiberglass sleeving (UL UZFT2) |
| Power modules | High-voltage high-temp zones | High-breakdown sleeving |
| Oil-immersed environments | Insulation retention in fluid | Oil-resistant sleeving, PTFE heat shrink |
PSR pure silicone tubing — body-friendly, ozone and aging resistant — for ventilators, oxygen concentrators, dental and beauty equipment. 4–10 kV dielectric grades available. FDA/LFGB compliance supported.
Food-grade silicone tubing with PFAS-free options; compliant fluid transfer for water dispensers, coffee machines and steam cleaners. FDA/LFGB documentation available on request.
TGS-1W-600C sleeving for hot runners, smelting equipment and engine environments up to 600 °C — flexible and smooth despite extreme temperatures.
Describe the working condition — we reply with a material recommendation, samples and datasheets.
