Pick your industry. See the working condition. Get the material that survives it.
Insulation does not fail because it is cheap — it fails because it was matched to the wrong condition. Thermal aging, abrasion, oil immersion, dielectric stress and assembly crush each demand a different construction. Below are the six industries we ship into most, the conditions that break insulation in each, and the exact materials we put forward.
Engine bay heat, HV busbars, chassis abrasion and sealed connector joints.
Lead exits, winding overhang, oil-cooled stators and assembly crush.
Continuous temperature class, oil immersion and long-term dielectric stability.
Steam plus heat, food-contact fluid paths and repeated flexing.
Biocompatible tubing, sterilisation cycles, ozone and aging resistance.
Outdoor UV, wide thermal cycling, humidity and high DC voltage.
A vehicle is the hardest insulation environment there is: continuous heat, oil and coolant splash, unending vibration, stone-chip abrasion — and now 800–1000 V DC running through the same harness that carries a 5 V sensor signal.
Under-hood air sits at 120–150 °C continuously and peaks past 200 °C near exhaust and turbo plumbing. PVC and standard polyolefin simply do not belong here.
HV traction circuits run 800–1000 V DC. The creepage distance across a busbar edge or a lead exit decides whether the pack passes its insulation test.
Every harness crossing a bracket, a body seam or another component wears on a test track. Woven constructions win where solid wall tubing rubs through.
| Typical Location | Working Condition | Recommended WCW Material |
|---|---|---|

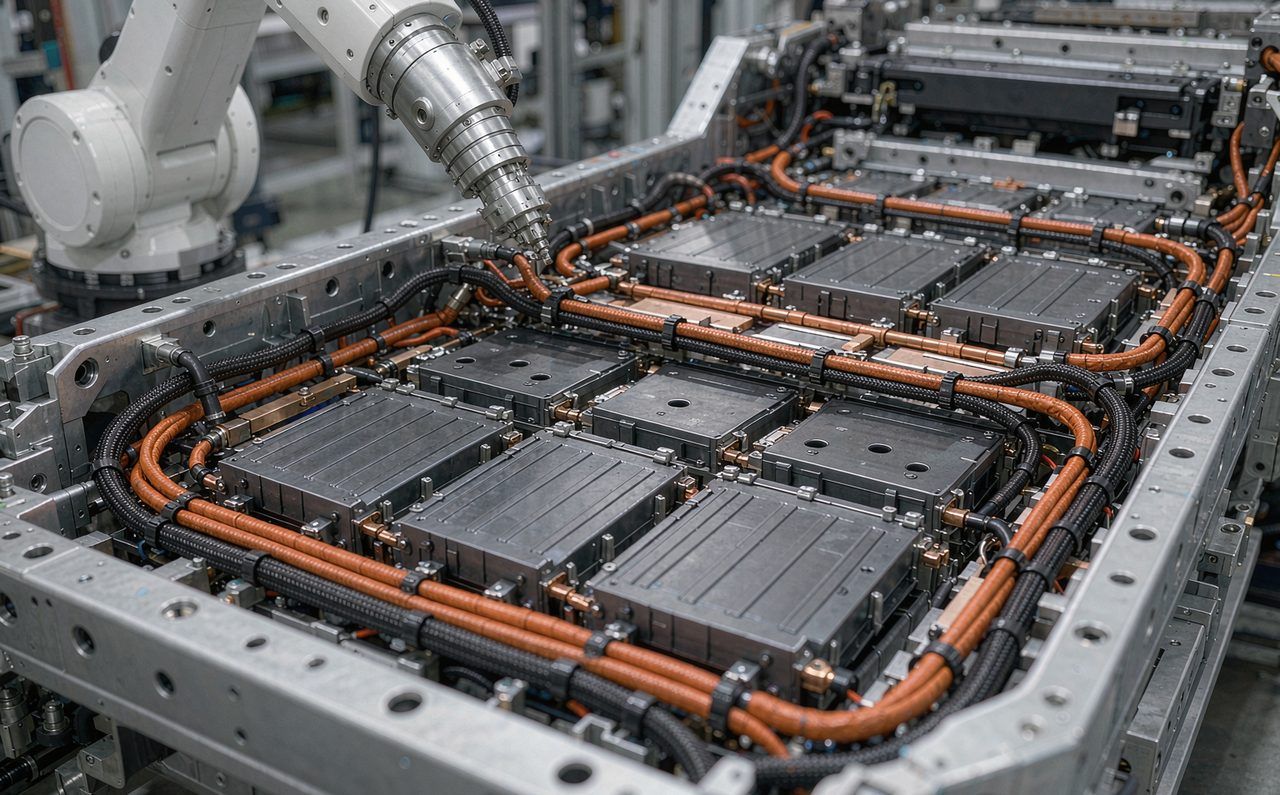

| Battery pack HV interconnection | 800–1000 V DC, dielectric stress, confined space | Silicone fiberglass sleeving (up to 50 kV), dual-wall adhesive-lined heat shrink for sealed joints |
| Drive motor three-phase leads | Class H heat, oil, vibration at the lead exit | Silicone fiberglass sleeving SRS/SRG, acrylic fiberglass sleeving for oil-cooled motors |
| Under-hood & chassis harness | 150 °C+, oil splash, chafe against brackets | PET braided sleeving (expandable, open weave), self-wrap sleeving for retrofit, corrugated tube for impact zones |
| Connector & splice sealing | Water ingress, strain relief, service cycles | Dual-wall adhesive-lined heat shrink, 2:1 and 3:1 ratios |
| Sensor & signal lines near HV | Thermal proximity, signal integrity | Thin-wall silicone fiberglass sleeving, colour-coded PET braid for identification |
Most motor winding failures start at the lead exit — the point where enamel-coated magnet wire transitions to an insulated lead. Heat, vibration, oil and dielectric stress all concentrate in that one spot.
| Position | Failure Mode | Recommended WCW Material |
|---|---|---|
| Motor lead wires | Dielectric breakdown, creepage tracking | Silicone fiberglass sleeving, dielectric strength 4–20 kV standard, up to 50 kV on selected constructions |

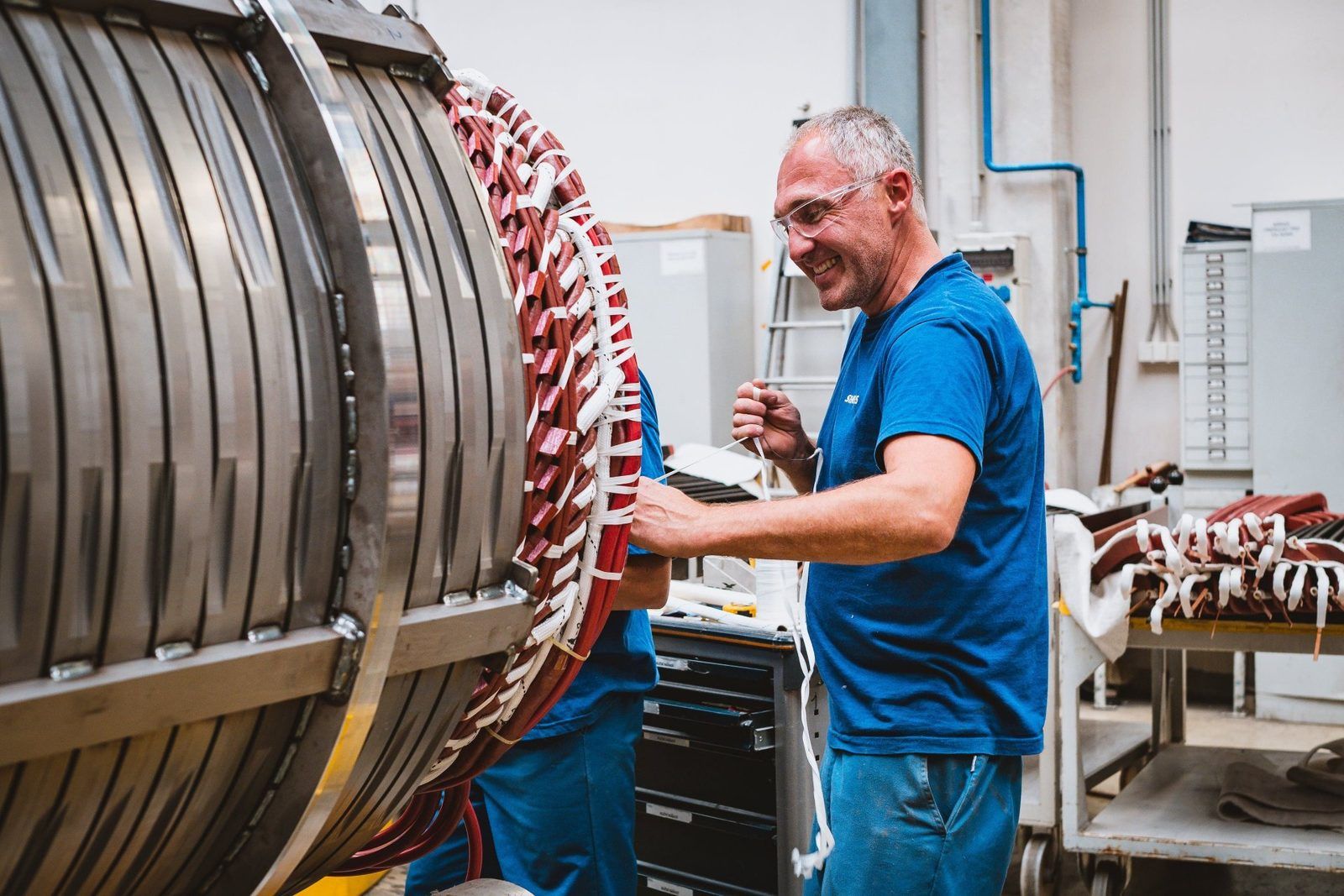

| Winding overhang | Thermal aging, batch-to-batch consistency | Silicone fiberglass sleeving to Class H (180 °C+, 220 °C peak), high-breakdown grades |
| Oil-cooled & compressor motors | Continuous oil immersion, dimensional change | Acrylic fiberglass sleeving — UL UZFT2 / CUL UZFT8, a recognition held by only around ten companies worldwide |
| Terminal box & control cable | Assembly crush, chafe at the gland | Cross-linked heat shrink for mechanical protection, sleeving for bundling |
| Pump, fan & valve motors | Humidity, thermal cycling, low cost target | PET braided sleeving, standard silicone fiberglass sleeving |
Where a transformer lead has to hold its dielectric strength for twenty years at a stated temperature class, the certificate is not paperwork — it is the design input. This is the segment where our UL recognitions do the selling.
| Position | Key Requirement | Recommended WCW Material |
|---|---|---|

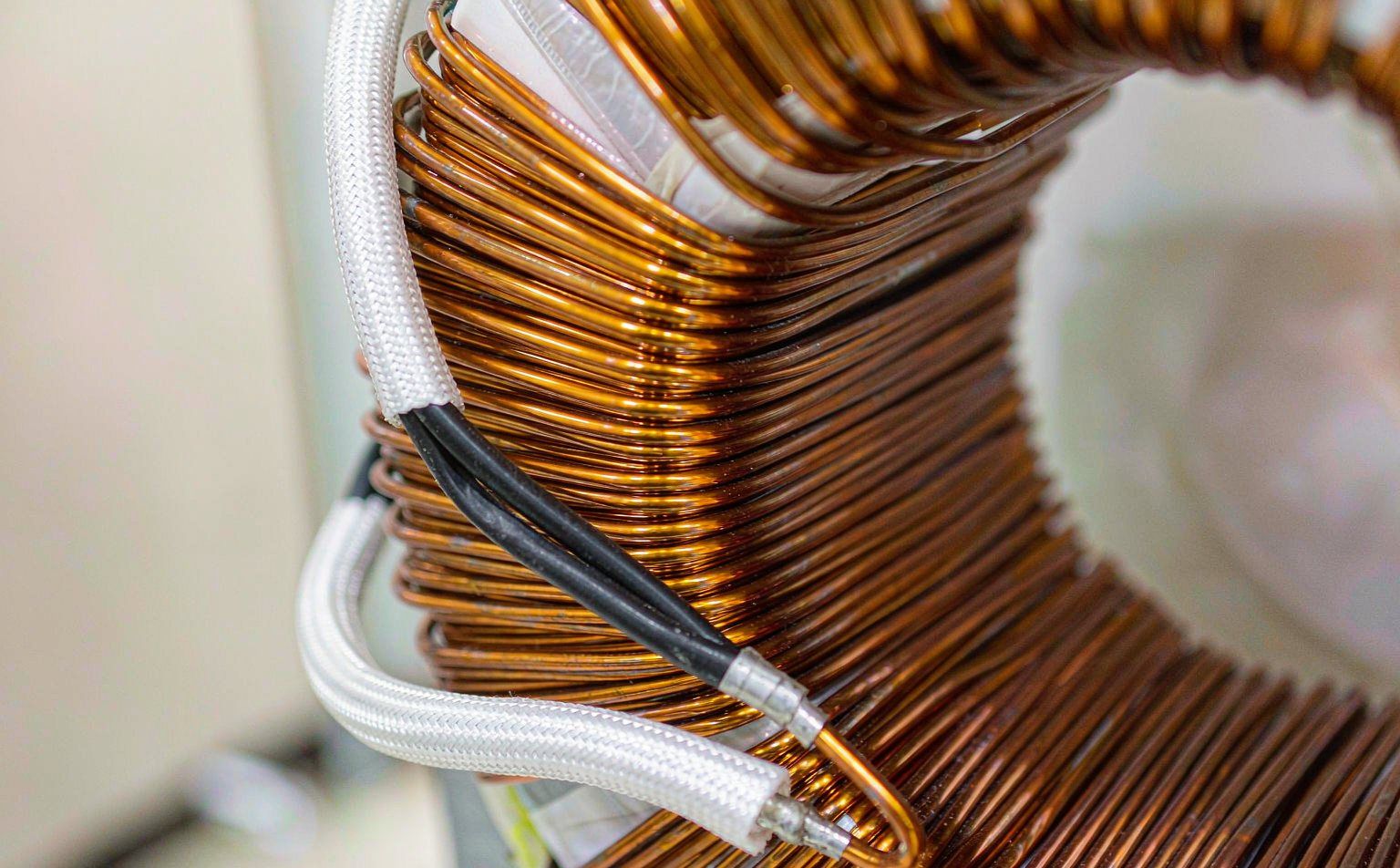

| Transformer leads | Continuous and transient temperature rating | Silicone fiberglass sleeving, Class H rated |
| Coil ends & interlayer | Dielectric plus mechanical protection | Acrylic fiberglass sleeving — UL UZFT2 / CUL UZFT8 |
| Power modules & inverters | High voltage in a high-temperature zone | High-breakdown silicone fiberglass sleeving, up to 50 kV |
| Oil-immersed assemblies | Insulation retention in dielectric fluid | Oil-resistant acrylic sleeving, PTFE heat shrink |
| Open-frame power supplies | Flame rating, space, cost | UL VW-1 rated sleeving, thin-wall constructions |
Coffee machines, steam stations, ovens, air fryers and water dispensers put two conditions together that most materials handle badly on their own: sustained heat and a food-contact fluid path. The material has to do both, and stay clear enough for the consumer to trust it.
On the fluid side: tubing that clouds, hardens, takes on taste or releases plasticiser after a few hundred steam cycles. On the electrical side: heating-element leads whose insulation brittles and cracks where it passes through the chassis wall.
| Application | What Breaks First |
|---|---|

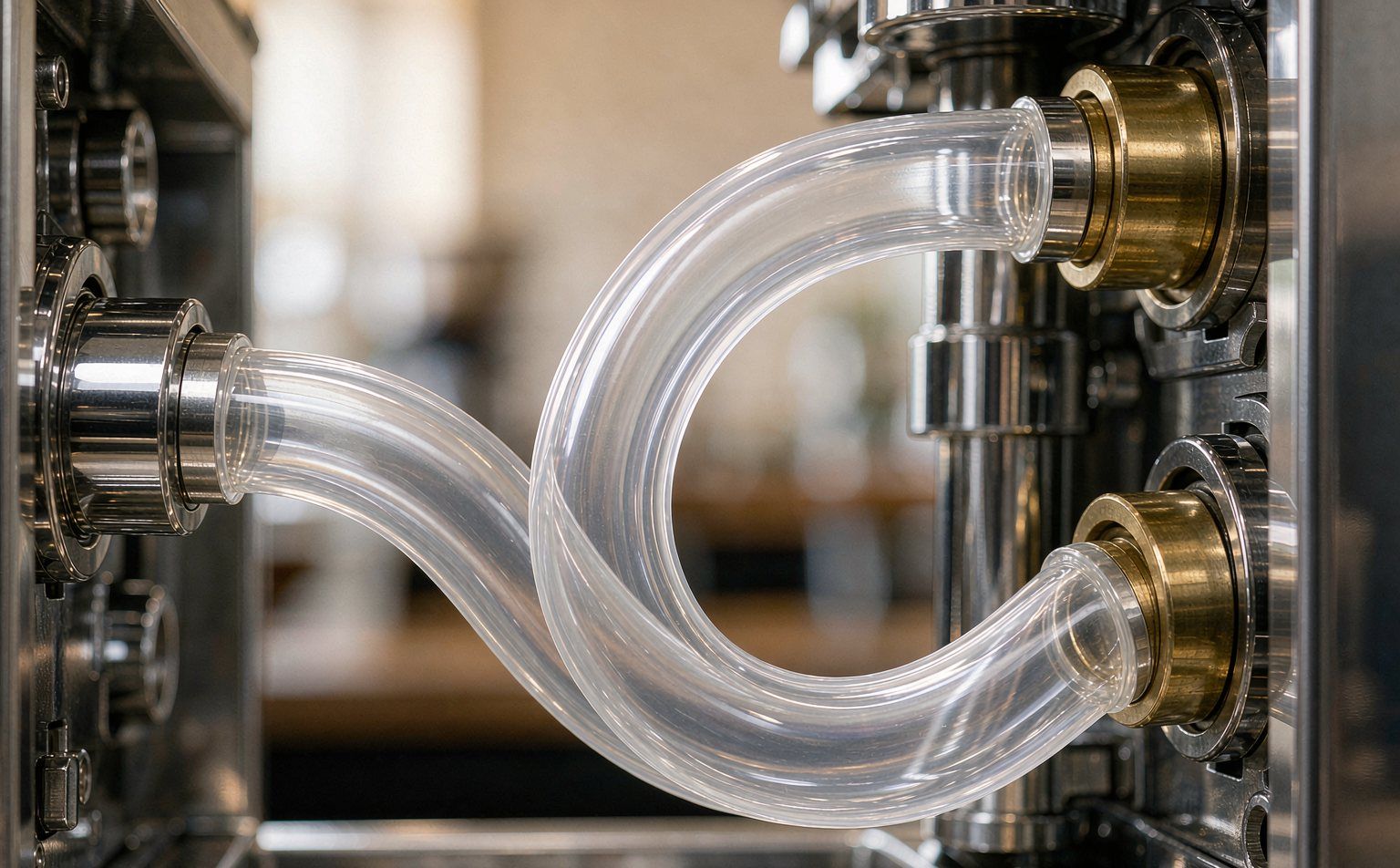

| Coffee machine water & steam line | Taste transfer, clouding, hardening at the boiler joint |
| Oven & air fryer element lead | Insulation embrittlement in the hot air stream |
| Steam station & garment steamer | Kinking at the handle, scale build-up, wall collapse |
| Water dispenser & purifier | Long-term flexibility, odour, food-contact compliance |
| Hot runner & small heater | Continuous temperature well beyond standard silicone |
Ventilators, oxygen concentrators, dental and beauty equipment, analytical instruments and beverage lines share one requirement: the fluid path must stay clean, stay clear and keep its properties through repeated sterilisation.
PSR pure silicone tubing for ventilators and oxygen concentrators — body-contact safe, resistant to ozone and aging, available in 4–10 kV dielectric grades where the tube also insulates.
Peristaltic pump tubing and transfer lines where consistent wall thickness and low extractables matter more than price per metre.
Compliant fluid transfer for dispensers, beverage equipment and steam cleaning — with FDA and LFGB documentation available on request rather than on a claim.
Construction selected for repeated autoclave or chemical sterilisation without hardening or dimensional drift.
High-clarity grades let operators see flow and contamination — a functional requirement in dosing and IV-adjacent equipment, not just an aesthetic one.
Cut length, wall thickness, hardness and termination structure to your drawing — with samples and validation data before tooling.
These systems live outdoors for twenty years and are inspected by nobody. UV, salt fog, humidity, rodents and daily thermal cycling do the damage slowly — which is exactly why the material has to be chosen once and chosen right.
| Location | Working Condition | Recommended WCW Material |
|---|---|---|
| Inverter & combiner box internals | High DC voltage, high internal temperature | Silicone fiberglass sleeving for HV lines, thin-wall sleeving for signal bundles |
| Battery energy storage PACK | DC busbar insulation, cell-to-busbar protection | Silicone fiberglass sleeving, dual-wall adhesive-lined heat shrink |
| Charging cable & gun assembly | Repeated flexing in all weathers, wear at the strain relief | PET braided sleeving (expandable, abrasion cut resistant), self-wrap sleeving |
| Outdoor cable routing | UV exposure, thermal cycling, rodent and edge abrasion | UV-stable braided constructions, corrugated tube, self-wrap sleeving |
| Container & cabinet wiring | Humidity, salt fog, long service life | PET braided sleeving, heat shrink at terminations |
If your enquiry lands between two industries, this is the table to read. Match the working condition on the left, take the material family on the right.
| Industry | Dominant Condition | Material Family | Rating That Matters |
|---|---|---|---|
| Automotive & EV | Heat + vibration + 800–1000 V DC | Silicone fiberglass sleeving, PET braid, dual-wall heat shrink | Class H, up to 50 kV, UL VW-1, −10 to +200 °C |
| Motors & generators | Lead exit dielectric stress, oil immersion | Silicone fiberglass sleeving, acrylic fiberglass sleeving | UL UZFT2 / CUL UZFT8, 4–20 kV standard |
| Transformers & power electronics | Continuous temperature class, flame | Acrylic and silicone fiberglass sleeving, PTFE heat shrink | Class H 180 °C+, UL VW-1 |
| Home appliances | Steam + food contact + repeated flexing | Platinum-cured silicone tubing, 600 °C sleeving | FDA / LFGB, PFAS-free, −60 to +230 °C |
| Medical & laboratory | Biocompatibility, sterilisation, ozone | PSR pure silicone tubing | 4–10 kV dielectric grades, low extractables |
| Solar, storage & charging | UV + thermal cycling + high DC voltage | PET braid, silicone fiberglass sleeving, corrugated tube | UV stable, abrasion cut resistant |
Four steps, no obligation, and no charge for the first two.
Temperature range, voltage, medium (oil, water, steam, air), movement, space and the standard you must meet. A photo of the current part shortens this a lot.
We come back with one or two recommended constructions, the reason each fits, and a sample or cut length for you to test on the line.
Dielectric strength, temperature class, flame rating, oil resistance and the UL file reference — handed over for your own qualification work.
Own plant, four production bases, cut-to-length and custom construction, with the paperwork your quality system asks for.
Tell us the working condition — temperature, voltage, medium and movement. We reply within one business day with a material recommendation, samples and datasheets.
